Flexible Magnet Customization Capabilities and Options #
As a leading permanent magnet supplier in Taiwan, JASDI is dedicated to meeting a wide range of custom magnet requirements. Our expertise covers flexible magnets in various thicknesses, widths, and lengths, with specialized options such as custom laminates, polarity configurations, cut-sheets, and kiss-cutting. Below, we outline our core offerings and customization possibilities.
Range of Custom Magnet Solutions #
We provide flexible magnets in roll lengths up to 600 meters (1968 ft), with widths ranging from narrow slitted rolls up to 1003 mm (39.5 inches). Thicknesses are available from 0.2 mm (0.008") to 2 mm (0.080"), depending on the width of the magnetic sheeting. Custom laminates can be applied to flexible magnetic sheeting, and we are open to developing special laminate styles to suit unique requirements.
For flexible magnetic profile strips, we offer extrusion in thicknesses from 1.5 mm to 12.7 mm and widths from 2 mm to 50 mm. Magnetization options include multipoles on one or both sides, single poles on both sides, or unmagnetized material. Both standard strength (isotropic grade) and high strength (anisotropic grade) materials are available.
For business applications such as printable magnet paper, we collaborate closely with clients to deliver tailored solutions.

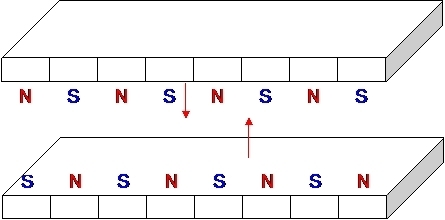

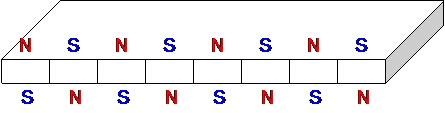

Magnetization Options for Flexible Magnets #
JASDI offers a variety of magnetization configurations to address specific application needs:
- Custom designs are available upon request.
- Choice of pole spacing (pitch) can be specified.
We work collaboratively to identify the optimal magnetization for your application.
Magnetic Extrusion Strip Customization #
Our flexible magnetic profile strips can be extruded in thicknesses from 0.76 mm (0.080") to 12.7 mm (0.5"), and widths from 5.08 mm (0.2") to 50.8 mm (2"). Customization options include:
- Custom profile strip shapes
- Unmagnetized or magnetized on both sides
- Match pole magnetization
- Choice of foam or acrylic adhesives
- Cut sheets
We are committed to finding the best solution for your specific requirements.
Custom Magnetic Sheeting Options #
JASDI offers magnetic sheeting in a variety of thicknesses, widths, and lengths to suit diverse needs:
| Width | Thickness | Length |
|---|---|---|
| 76.2 mm (3") ~ 610 mm (24") | 0.2 ~ 2 mm (8~80mil) | Sheeting or roll form |
| 610 mm (24") ~ 1003 mm (39.5") | 0.4 ~ 0.8 mm (15~32mil) | Sheeting or roll form |
Our flexible magnetic sheeting can be supplied with printable laminates, including colored vinyl and papers suitable for screen, offset, digital, flexo, and inkjet printing. Acrylic adhesive-backed options are also available for a wide range of applications.
Available Customization Options:
- Cut sheets
- Kiss-cutting
- Custom packaging
- Choice of vinyl and paper laminates
- Choice of foam and acrylic adhesives
- Lamination on both sides
- Magnetized on both sides
- Unmagnetized material
- Isotropic and anisotropic grades (high energy)
- Custom pole spacing
We are equipped to apply your specified laminates or source special laminates for unique requirements. Our team is ready to collaborate on any special lamination or magnetization requests.
For business products such as printable magnet paper, we are committed to delivering the best custom solutions for your needs.
